Product Details
＋

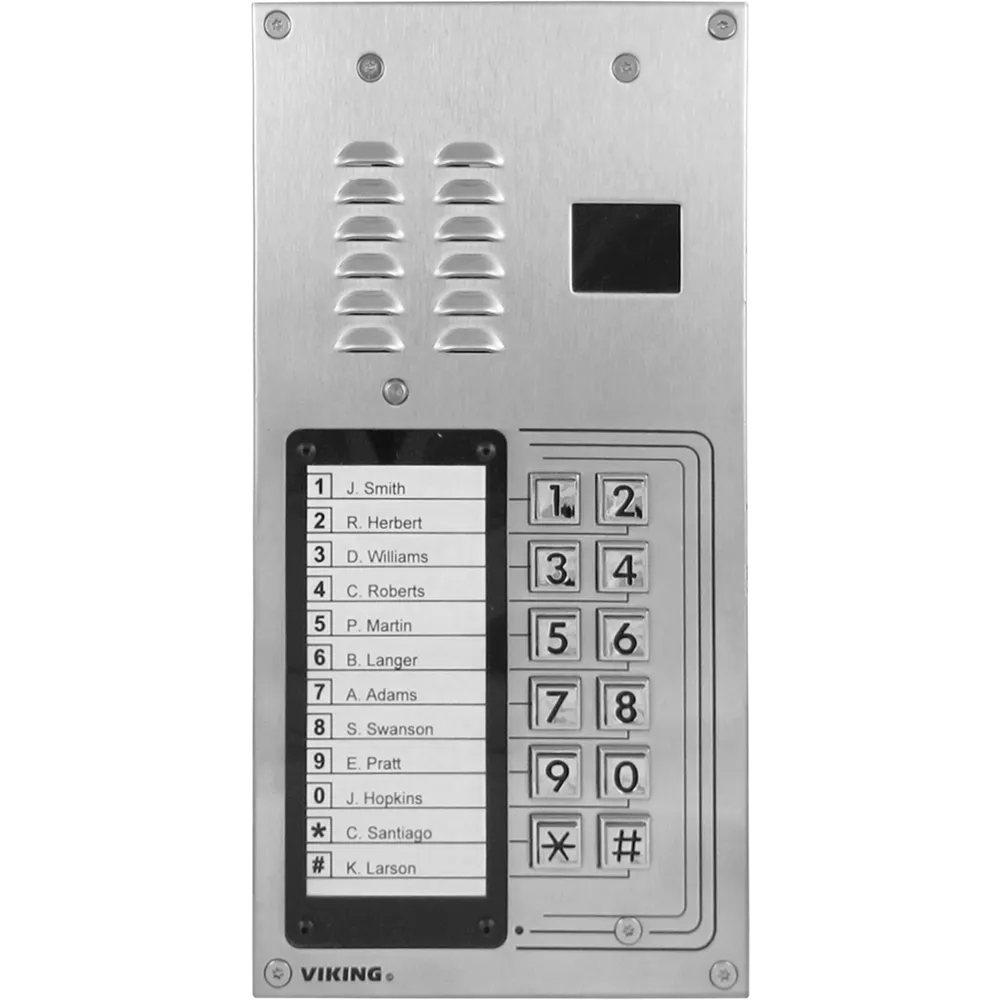

Viking K-1270-IP-EWP Features
- Vandal Resistant Features
- 14 gauge louvered 316 stainless steel faceplate
- Permanent laser etched graphics
- Speaker and mic screen
- Heavy-duty metal keypad buttons
- T-10 Security Torx drive mounting screws
- Weather Resistant Features
- Marine grade 316 stainless steel faceplate and screws
- Keypad internally sealed per IP67
- Mylar speaker
- Self-draining mic mount
- Gaskets for faceplate, mic, and speaker
- Enhanced Weather Protection (EWP)
- Built-in 125 KHz 26-bit Wiegand proximity card reader with LED, “beep” read confirmation, and EWP board protection
- Two sets of SPDT 2 Amp relay contacts for controlling a door, gate, or camera
- Optional RC-4A for secure remote relay control, see DOD 582
- Blue “Call/Status” LED indicator
- SIP compliant
- PoE powered (class 2, <6.5 Watts)
- Automatic Noise Canceling (ANC) feature for clear audio even in noisy environments
- Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
- Network downloadable firmware
- 26 bit Wiegand input for optional proximity card readers
- Programmable to speed dial up to 12 numbers
- Cycles to rollover phone number on busy or no-answer
- Program up to 1,000 keyless entry codes and/or proximity card numbers
- Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and days of week
- Event logging with time and date stamp
- Hangs up on: busy signal, time-out, or touch tone command
- Program remotely
- Extended operating temperature range: -40°F to 140°F (-40°C to 60°C)
- Enhanced Weather Protection (EWP) included, EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
- Adjustable volume for microphone and speaker
- Selectable auto-answer feature for monitoring
- Zinc plated steel rough-in box included
- Optional Long Range RFID Receiver.
- Optional Surface Mount Boxes available.
- Optional kit to illuminate the front panel at night.
- Diagnostics for testing mic, speaker, and relays
APPLICATIONS
- Gate Entrance
- Courtesy Assistance Phone
- Customer Service Phone
- Automated Teller (ATM) Phone
- Door Entry Phone
- Apartment Entry Phone
- Kiosk Phone
SPECIFICATIONS
| Power | PoE class 2 (<6.5 Watts) |
|---|---|
| Dimensions – Overall | 5” x 10” x 2.5” (127mm x 254mm x 63.5mm) |
| Dimensions – Rough-In Box | 4.5” x 9.12” x 2.5” (114mm x 232mm x 64mm) |
| Shipping Weight | 4.2 lbs (1.9 kg) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Humidity | Up to 100% |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Connections | (1) RJ45 10/100 Base-T, (10) gel-filled butt connectors |
